Paint application and testing system

A three module system for applying, analysing and destruction-testing paint. Includes integrated laser profilometry, spectrophotometry & more.
Labman custom system: Paint application and testing system

Key features

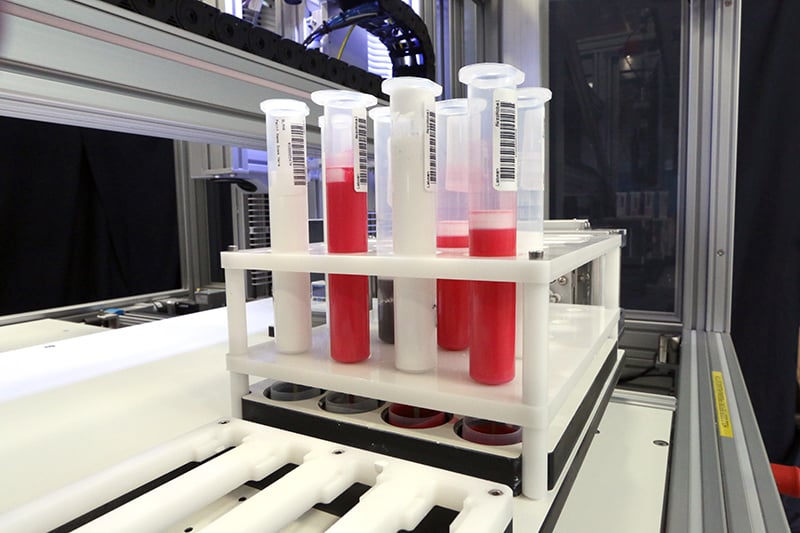

20 Syringes Per RunSpace for 20 paint filled syringes per run
Applied FilmsUp to 8 applied films per syringe

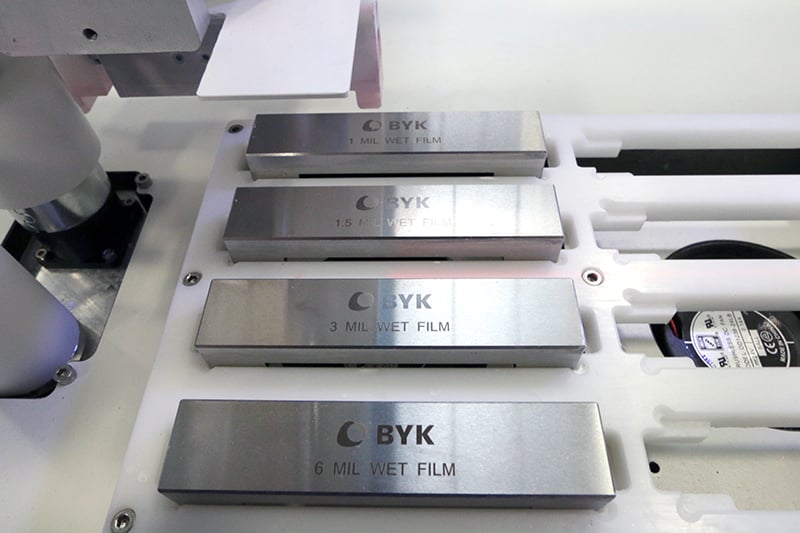

BYK Bird BarsPaint applied with BYK Bird Bars

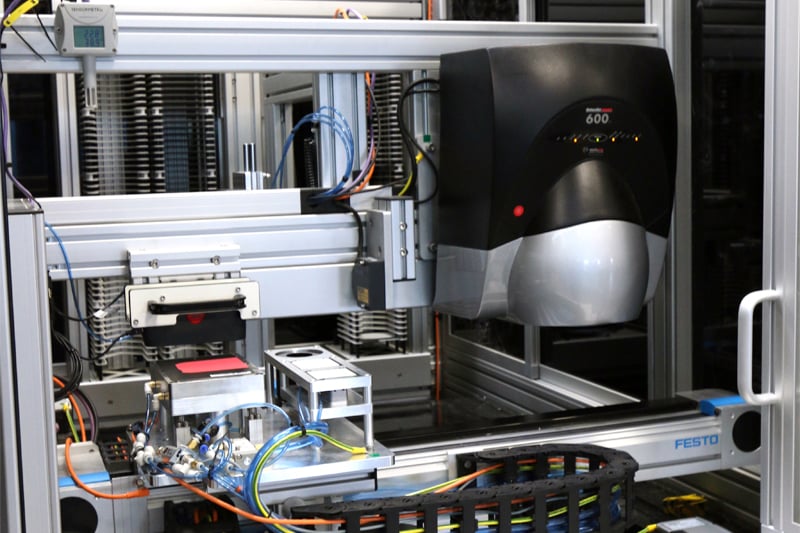

X-rite SpectrophotometerWet film optical properties collected with X-rite non-contact spectrophotometer
Sheen MeasurementsSheen measurements of dry films

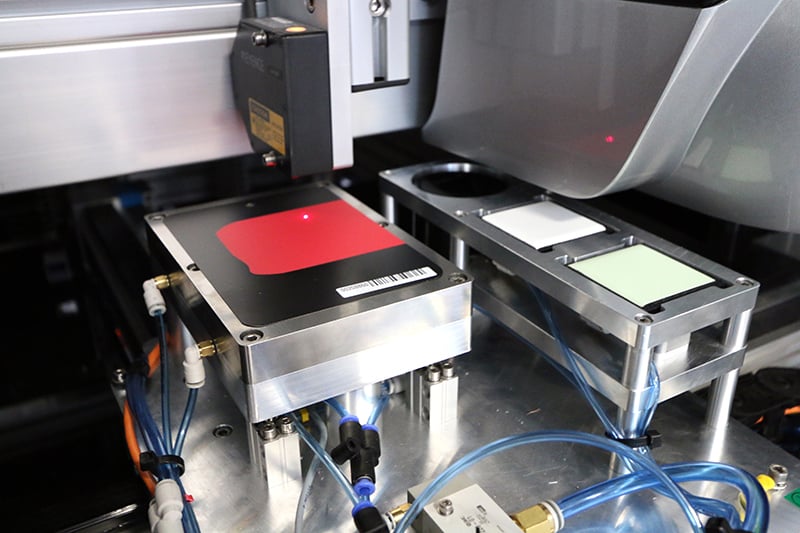

Laser ProfilometryWet and dry film thicknesses measured by laser profilometry
Burnish Resistance TestingSemi-automated burnish resistance testing
Abrasion Resistance TestingSemi-automated abrasion resistance testing
CleaningApplicators cleaned by the system


Overview

System Overview.

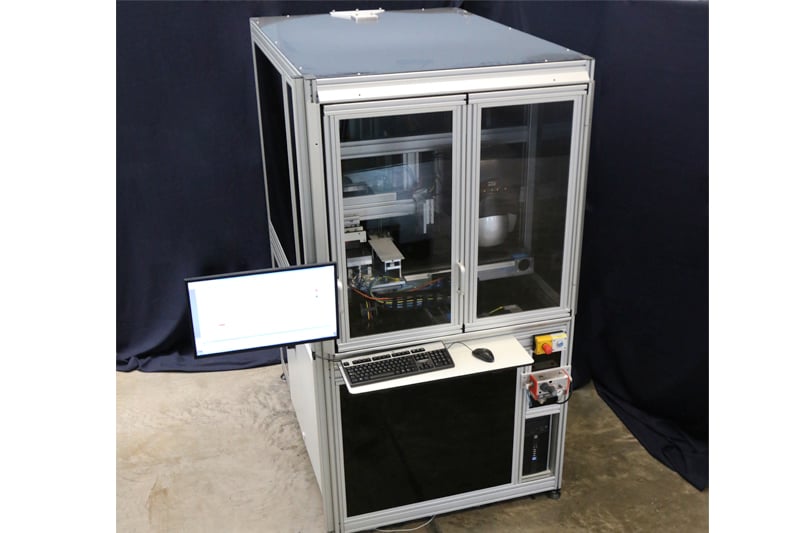

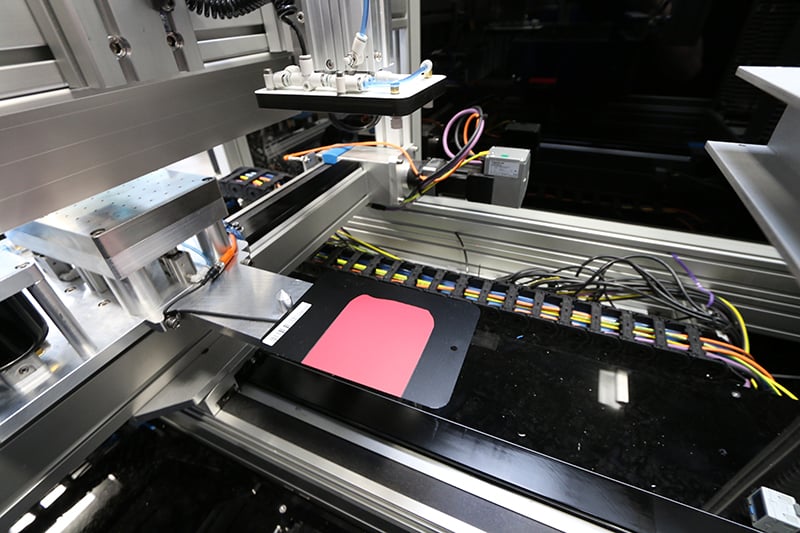

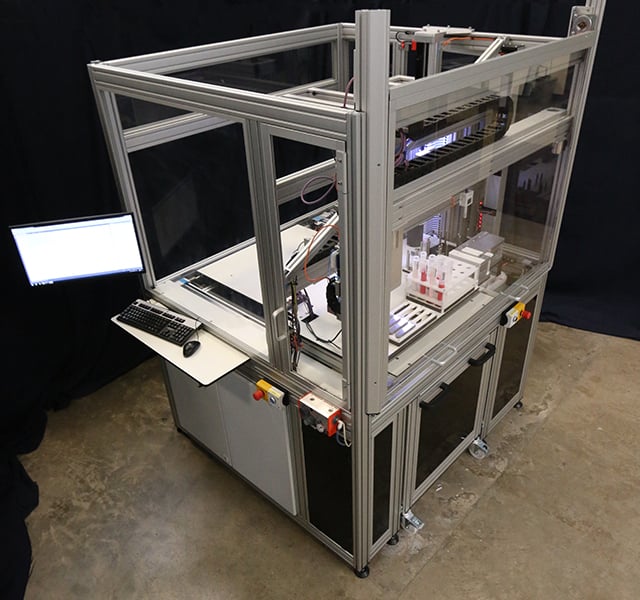

At the beginning of 2014 Labman delivered a paint testing system to an international coatings manufacturer. This three module system alleviates the requirement for staff to conduct repetitive testing allowing them to conduct more value adding tasks. It also improves data consistency and integrity. The application module takes syringes pre-loaded with paint and uses BYK Bird Bars of various sizes to apply the paint to metal substrates. These paint films are then assessed by laser profilometry and a non-contact spectrophotometer to provide film thickness data and wet optical properties. After drying, the substrates with applied paint films are moved to the analysis module. The films are subjected to laser profilometry, gloss measurement and contact spectrophotometry to provide film thickness data and dry optical properties. If desired, the substrates can be taken through the guided work flow of the abrasion/burnish resistance module. By employing an oscillating bed, gloss meter and balance it is possible to study the resistive properties of the paint film with all data being automatically collected and stored in a database.

“The newest model of TIDAS instruments is being put through rigorous evaluation and constant use. The upgrades to the software and automatic draw-down device have made this newest member of the TIDAS family an indispensable must have. The results obtained from the TIDAS instruments have made it easy to show our customers the reality of lab grind analysis without putting o a lab coat, for this we are grateful. Thanks to the Labman team for the great support and superb customer service. The transition from installation to full practice was a snap.”
— Jose AbrantesTechnical Market Manager
